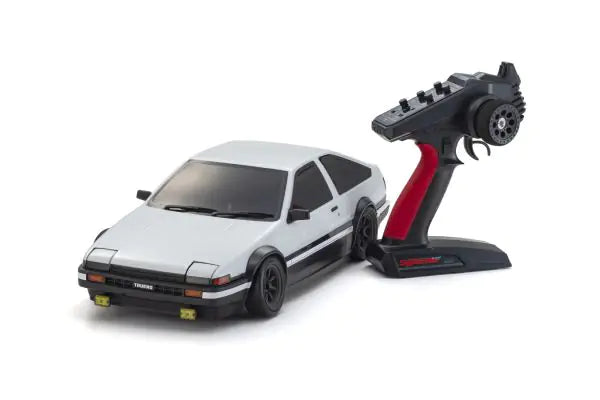

Kyosho 1:10 Scale Radio Controlled Electric Powered 2WD FAZER D2 FZD2 Series readyset Toyota SPRINTER TRUENO AE86 White 34501T1

Kyosho 1:10 Scale Radio Controlled Electric Powered 2WD FAZER D2 FZD2 Series readyset Toyota SPRINTER TRUENO AE86 White 34501T1

Regular price HK$1,880.00
Regular price Sale price HK$1,880.00
Sale Sold out

An all new performance based drift platform with a newly designed electronics.
Making the FAZER D2 the new standard for radio control Drift.


The FAZER series Readyset is primed for action straight out of the box, simply load a charged battery on the car and insert batteries into the transmitter. Now the long-awaited RWD drift-spec FAZER D2 model has arrived! Rear two-wheel drive (RWD) is the standard configuration for current 1/10 scale drifting R/C cars and slides over the road surface under heavy counter-steer, just like a true drifting machine. With its drift-spec RWD chassis, the FAZER D2 features different weight distribution and suspension design to the standard FAZER as well as a receiver with built-in gyro unit that automatically controls counter-steer for optimal body slide. The gyro controls both steering and throttle, allowing newcomers to drifting to drift drive like a pro. The chassis also incorporates other modern R/C drift car components such as long-span suspension arms and a high-mounted motor for easy handling and setup. Even though this FAZER is packaged as a Readyset, you can still change and upgrade parts for custom tuning and setting of the D2 like a pure R/C car. To complete the full drift machine experience, this model includes Kyosho’s ultra-scale body and a variable wheelbase that allows a variety of body styles to be mounted. Traditionally, 1/10 scale drift cars have been the domain of experienced drivers but the complete FAZER D2 Readyset package brings the thrill of drifting machines within easy reach.


Kyosho’s meticulously finished ‘ULTRA SCALE BODY’ faithfully reproduces the smallest details of the car's body including light buckets, bumpers and mirrors to create a realistic ‘action display-quality model’. The ‘ULTRA SCALE BODY PLUS’ takes this even further by eliminating mounting holes that are drilled into the polycarbonate body.


●Fully assembled 1/10 scale EP (electric) drift car in a Readyset package. All you need is 4 x AA batteries for the transmitter, and a battery with charger for the chassis.
●Body is painted with decals applied and the R/C system is pre-installed, so you can drive it straight out of the box.
●Newly designed RWD chassis is optimized for drift driving and is equipped with a steering and throttle gyro that makes drift control easy for anyone to enjoy.
●Plastic drift tires are included as standard and provide the optimal balance of drift slide and control.
●Includes newly designed KRG-331D receiver with built-in gyro and KS4072-06W servo.
●Variable wheelbase design allows most existing FAZER series bodies to be mounted.
●Battery holder can accommodate different size battery packs so most standard battery packs for R/C cars can be mounted.
●Wide range of optional parts are available for tuning and customization.







Completely new drift-spec RWD chassis design features pre-installed R/C system and receiver with built-in gyro. Suspension and motor mount are specifically designed for drift performance.



Toyota’s AE86 Sprinter Trueno is still popular today, nearly forty years after its launch almost 40 years ago in 1983. Kyosho has immaculately reproduced this ultra-scale body with molded plastic front and rear bumpers and also the AE86’s signature retractable headlights that can be (manually) open and closed.



Long-span front double wishbone suspension provides plenty of steering angle with adjustable caster, roll center, and other geometry.




technical-image-01

High mount position of the motor induces moderate roll characteristics. User-friendly G22 brushed motor is included as standard with a gear cover to prevent dirt etc. from interfering with the drive train.




technical-image-02

Motor mount eliminates need for tricky gear backlash (mesh) adjustment. Gear ratio can be changed using the elongated hole to fit Kyosho 48P 16-37T pinion gears.




technical-image-03

New KS4072-06W servo delivers ideal steering characteristics for drift driving and works in combination with newly developed gyro unit that produces optimal counter-steer control.




technical-image-04

Equipped with a newly developed KRG-331D receiver incorporating built-in gyro unit optimized for drift driving. The gyro moderates both steering and throttle (speed control), and the gain (sensitivity) of each can be adjusted with a dial.




technical-image-05

The ESC (Electronic Speed Controller) is mounted at the rear of the car to optimize weight distribution for drifting. The ESC is fixed in a special tray that can be removed with a single screw for easy maintenance.




technical-image-06

The resin main chassis is split into front and rear sections, and the connection points can be changed to adjust the wheelbase to suit the body being mounted.




technical-image-07

Newly designed concealed body mounts mean the fixing posts and pins do not protrude externally, allowing a more realistic appearance of the exquisite ultra-scale body.




technical-image-08

Wheel hubs are decorated with dummy brake calipers and discs, dramatically elevating the scale appearance. The rear drive unit uses a spool (rigid) axle without a differential function to support smooth drifting.




technical-image-09

The optional Micro Servo (ON-MS18) and LED Light Unit (97054-4HR) and Supercharger Set【Servo Mount Plate(FAB707-01SMB)】 can be installed

■Length (Body included) 462mm
■Width (Body width * Excluding mirrors) 195mm
■Width (chassis) 212mm
■Height 134mm
■Chassis Height 12mm (approx.)
■Wheelbase 260mm (240-273mm ※Adjustable)
■Tread(F)172mm
■Tread(R)170mm
■Gear Ratio 9.1:1
■Tread(F/R)φ63×24mm
■Weight 約1,450g
■Motor G22
■R/C system  Syncro KT-231P+

<Kit Contents>
●Completed chassis with R/C radio installed
●Factory assembled body complete with color scheme
●Syncro KT-231P+ transmitter
●1.5/2.0mm Hexagonal wrench
●Cross wrench (small)
●Setting change parts

<Required for Operation>
●4 x AA batteries for transmitter
●Battery for chassis (recommended: 7.2V Ni-MH battery)
※Recommendation :SPEED HOUSE 7.2V 22HV Ni-MH Battery 71322B
                                             SPEED HOUSE 7.2V 36HV Ni-MH Battery 71324B
●Charger for battery for chassis
※Recommendation :SPEED HOUSE C-02B AC PEAK CHARGER 72002B
                                             7.2V USB Charger for NiMH 72203
●Tool
